Axon Robotics

Axon Odometry

Axon Odometry

Regular price $49.99 USD
Regular price $62.47 USD Sale price $49.99 USD


Localization doesn't have to break the bank. The Axon Odometry Bundle provides unmatched performance at lower prices than ever before. Featuring the brand new Axon Encoder, tried and true 35mm omni wheel, and an anodized aluminum backplate, you can expect nothing but the most compact and durable solution.

Mechanical Specifications

  • Dimensions: 70mm x 40mm x 36.5mm
  • Wheel Diameter: 35mm
  • Encoder Resolution: 4096 CPR

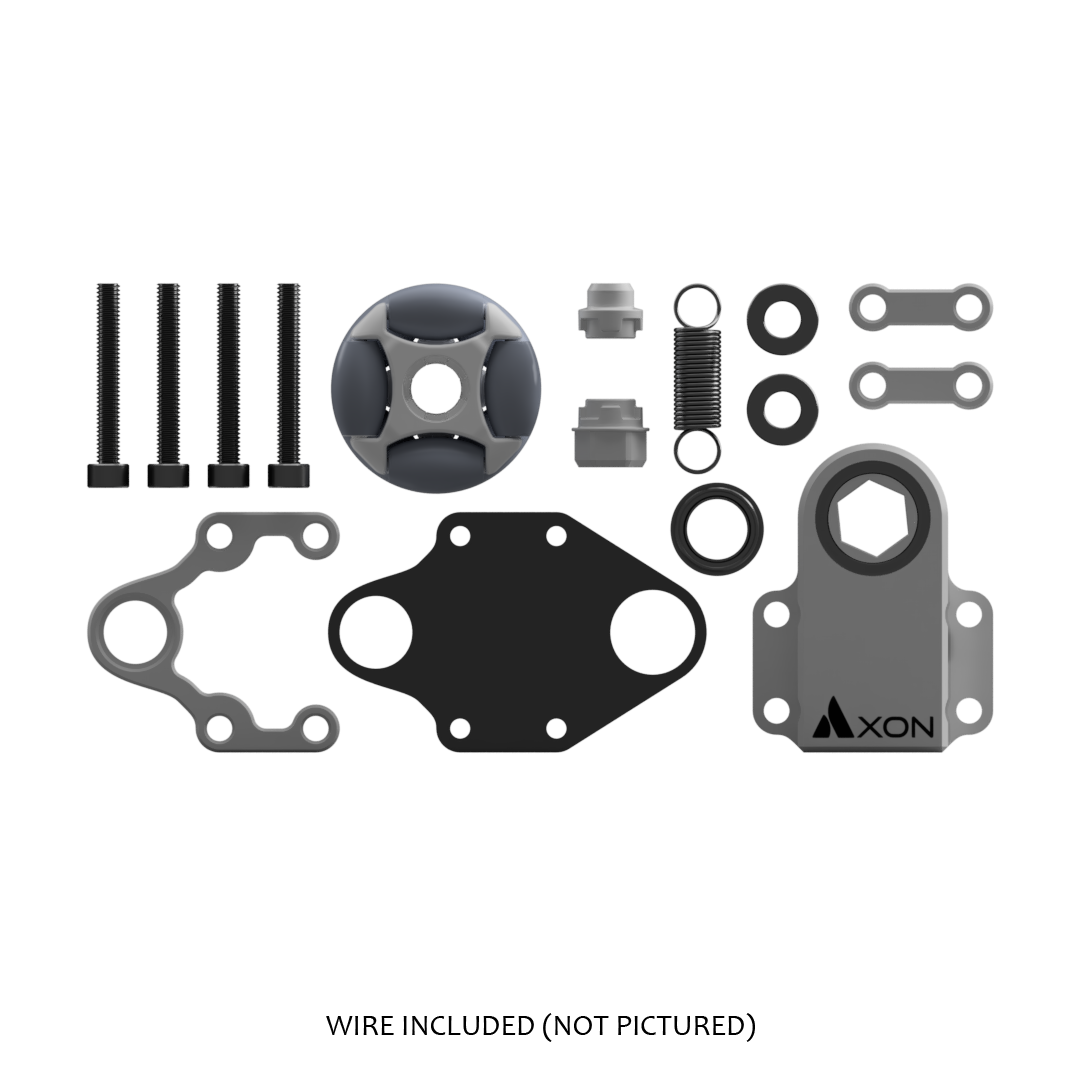

In the Box

  • 1x Axon Encoder**
  • 1x Axon Encoder Wire**
  • 1x 35mm Omni Wheel**
  • 1x Main Plate
  • 1x Middle Insert
  • 1x Encoder Insert
  • 1x Bearing Insert
  • 1x Wheel Bearing
  • 2x Pivot Bearing
  • 2x Screw Spacer
  • 4x M4 x 30mm Screw
  • 1x Module Spring

**Only included with Full Bundle

CAD Download

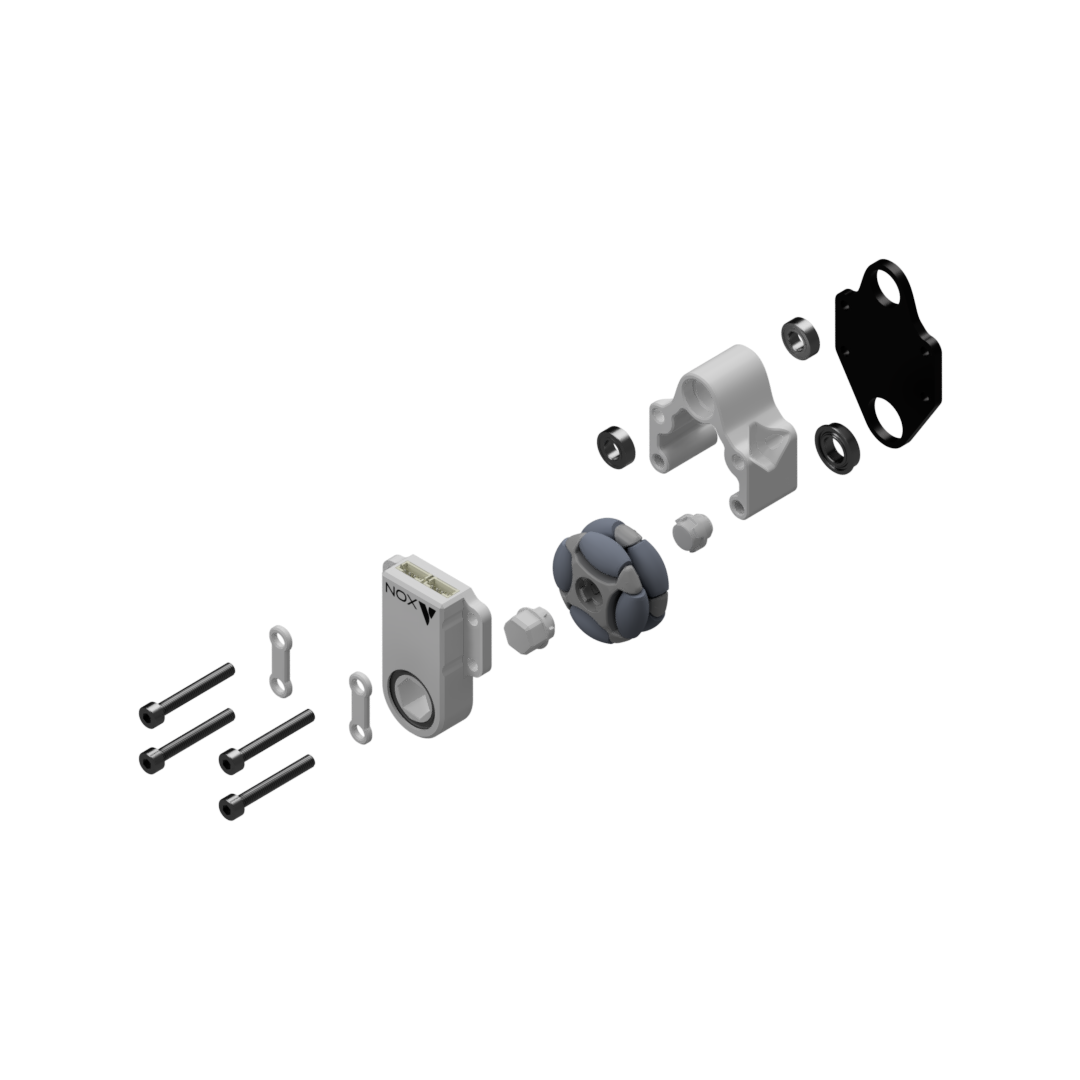

Axon Odometry Bundle Assembly


All sales are final. All products are individually tested before shipping, however in the case of a faulty product, we would be happy to help you out and make things right! Contact us
